IEC 60335-1: 2013 clause 22.12 figure 13 small parts cylinder

Product Description：Name：IEC 60335-1: 2013 clause 22.12 figure 13 small parts cylinderType：BND-SPCRefer Standards:This small parts cylinder conforms to IEC60335-1: 2013 clause 22.12 figure 13, ISO 8124-1 clause 5.2 and fig. 15, etc.It is used to check whether there is possibility that the small cells and batteries or children‘s products like the toys can be swallowed by the children under 36 months.

IEC60068 tumble barrel drop tester

IEC 60950 50KΩ/5KΩ/2KΩ/1KΩ Non-inductive resistor

Description

Product Description：

Name：IEC 60335-1: 2013 clause 22.12 figure 13 small parts cylinder

Type：BND-SPC

Refer Standards:

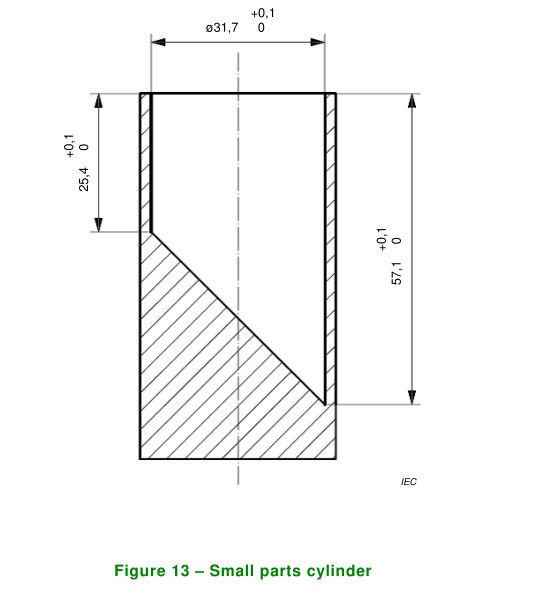

This small parts cylinder conforms to IEC60335-1: 2013 clause 22.12 figure 13, ISO 8124-1 clause 5.2 and fig. 15, etc.

It is used to check whether there is possibility that the small cells and batteries or children's products like the toys can be swallowed by the children under 36 months.

Application:

It is used to check whether there is possibility that the small cells and batteries or children's products like the toys can be swallowed by the children under 36 months.

Test Principle:

The testing object is placed into the tester from any directions. If it can reach to the button of the tester, the object is proved to be small object.

Technical Parameters of Small Parts Cylinder

Model	BND-SPC
Material	Stainless steel
Dimension	41×41×66mm
Dimensional tolerance	0.1mm
Weight	438g
Standard	16 CFR 1500.48, ASTM F963, EN-71-1, ISO 8124-1,IEC60335-1: 2013 clause 22.12 figure 13
