Product Description：

Name：Soil PH Sensor

Type：BND-PH10

PH10 soil pH (PH value) sensor, to solve the traditional soil PH to be equipped with professional display instruments, cumbersome calibration, integration difficult, power consumption, expensive, carrying difficulties and other shortcomings. Can be widely applied to agricultural irrigation, flower and horticulture, meadow pastures, soil testing, plant culture, scientific experiments and other fields. PH10 low power consumption, for long-term uninterrupted monitoring. The sensor has the following features:

· New soil pH sensor for online real-time monitoring of soil pH.

Adopt international advanced solid dielectrics and large areas of PTFE liquid junction, easy to plug, maintenance-free.

· Waterproof seal, high integration, small size, low power consumption, easy to carry, outdoor use.

High precision, fast response, good interchangeability and reliable performance.

Complete protection circuit and a variety of signal output interface optional.

Technical parameters

Signal output type	Voltage output 0-2V (Output impedance of about 0 Ohm)	Current output 4-20mA (Load resistance <500ohm)	RS485 interface Modbus protocol
Supply voltage	3.6-30V/DC	12-30V/DC	3.6-30V/DC
Static power	6mA@24V DC	30mA@24V DC (Current output channel is20mA)	6mA@24V DC
PH value range	Range: 0-14PH, resolution: 0.01PH, accuracy ± 0.1PH
Temperature range	Range: -40 ~ 80 ℃, resolution: 0.1 ℃, accuracy: ± 0.5 ℃
Degree of protection	IP65
Operating environment	-40~85℃
Default cable length	PH probe cable 5 m Transmitter cable 2 m Cable length can be customized

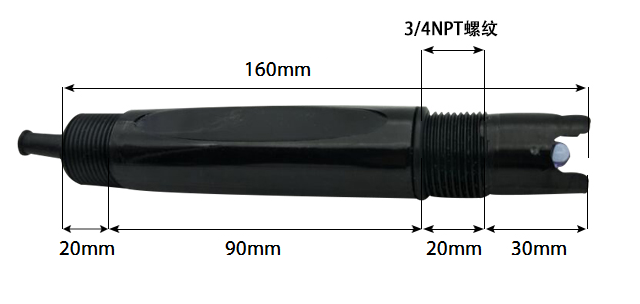

Dimensions	PH sensor - probe part size: length 160mm, diameter 30mm PH sensor - probe part size: length 116mm, diameter 30mm

PH sensor -the size of the Transmitted

Select the order

Code No.

code

Explanation

Code1：MODEL

PH10

PH10 PH soil sensor

Code 2：

Supply voltage

3.9-30V DC

3.3-16V DC

Code 3：

output signal

Voltage output 0-2V

Current output 4-20mA

RS485 interface, Modbus protocol

RS485 interface, Modbus protocol & voltage 0-2V output

RS485 interface, Modbus protocol & current 4-20mA output

SDI-12 interface

customize

Code 4：

Cable length

002

XXX

PH sensor cable 5 meters, transmitter cable 2 meters

PH sensor cable 5 meters, custom transmitter cable, XXX for any line length (unit: m)

Model example:

PH10 soil PH sensor, 3.9-30V DC, RS485 interface, Modbus protocol, PH sensor cable 5 m, transmitter cable 2 m. The selection code is: PH10 - A C 002

Soil PH Sensor BND-PH10
